Product Description
Automatic Paper bag making machine with
2colors printing
Item
1
Adjustable Roll to Square Bottom Paper bag
making machine
Application:This machine is
designed to manufacture square bottom paper bags from paper roll in blank or
printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing,
bottom forming and final product out feed can be completed within one time by
this machine. It is ideal equipment for making paper bag for foodstuff bag,
shopping bag and so on. Controlled by PLC(inovance) system,
equipped with in-touch screenMCGS )( and servo
motor for bag length control, this machine can produce different size paper
bag
TECHNICAL PARAMETER
MODEL ZX-460D
Width of Paper roll ............................................................. 600-1300mm
Length of Bag ..................................................................... 225-470mm
Width of Bag ....................................................................... 220-450mm
Width of Bag Bottom .......................................................... 80-180mm
Paper weight .........................................................................80-160g/m2
Max. Diameter of Paper
Roll ...............................................1500 mm
Internal Diameter of
Roll Core..............................................76 mm
Max.Speed ............................................................................150
pcs/min
Total
Power ...........................................................................15Kw
Weight of Machine ...............................................................Approx 9000
kg
Overall
Dimension................................................................8600*2500*1800mm
Bottom Tube
Length
Item 2
Performance
and Features:
1.
Adjustable roll to square bottom bag making machine
2.
Introduce In-touch screen human-machine interface, easy for correction
and fine adjustment. Alarm and working status can be displayed in screen
on-line, easy for operation and maintenance.
3.
Equipped with Mitsubishi PLC for centralized control system and SICK
photocell for correction, tracking the printed material accurately, minimize
the adjustment and preset time, increase the production efficiency.
4.
Human oriented security protection, whole housing design, ensure the
safety of operator.
5. physiosis roller hydraulic material loading system with chuck, hydraulic up/down system
6.
Automatic constant tension control for unwinding, EPC web guider system,
motor for material feeding with inverter, minimize the adjustment time for web
alignment.
7.
High speed oriented design ensure successful of production: within the
suitable paper range, production capacity can reach 90~180pics/min, even
higher. Increased the unit production capacity and higher profit.
8.
Original SCHNEIDER electric system, ensure better stability and reliability; perfect after
sale service, trouble free for customer.
*Speed will be variable due to different glue
quality and operator`s skill.
* Bag Dimension,
Adhesive Quality, Operator Knowledge, % Moisture, Type and Basis weight of
Paper Can affect Machine Speeds.
Main Configuration
1.Unwind Section
Structure, Features:
(1) Separated
single unwind rollstand with hydraulic lift device.
(2) physiosis roller for paper roll loading,
the load arms are driven by two hydraulic cylinders
separately, can be adjusted arbitrarily.
(3) magnetic
powder brake and constant auto tension control for unwinding tension control.
(4) EPC (electronic program control )web guide
system for material alignment.
Parameter,
Specification:
(1) Unwind
Rollstand.................................................One (1) Supplied
(2) hydraulic lift device for material load .....................1 Set
Hydraulic Cylinder 100X500
.........................................................1 PC
Motor for
hydraulic pump(1.5kw)............................................1 Unit
(3) Roll load Arm Switching Device .....................................................1 Set
(4) physiosis roller chuck Device ....................................................1 Set
(5) Magnetic Powder Brake (100N.m) ................................................. 1 Unit
(6) Tension transducer .......................................................................
1PC
(7) EPC web
guider system for material edge alignment ........................1 set
Sensor, Motor for drive, Hydraulic Cylinder, Hydraulic Pump etc.
2.Material
In-feed Section
Structure, Features:
(1) Separated
Material In-feed section
(2)
Adjustable side seam glue coating, automatic disengage when machine stop
Parameter, Specification:
(1) Adjustable Side Seam Glue Coating (Seam Paste Stand-One (1)
Ply Bag) :1 Set
Parts for Lateral Adjustment of Seam Glue
Applicator
Photo-eye for Controlling Preprint
Registration
3.Tube Forming Section
Structure, Features:
(1)
Whole unit tube forming frame
(2) Former Mould
Support Design,Adjustable Former Support for Precise Former Alignment
(3)
Multi Side Tuck Discs Design, Manual Adjustment.Rotary Side Gusseting Tuck Disc-Quick Release Paper
Threading & Save Production Setting
(4)
Adjustable Pressing Wheel
Parameter, Specification::
(1)
Adjustable Former Support Device .................................... 1 Set
(2) Side Tuck Device ........................................................... 1Set
Side Tuck Discs .............................................................Each 6
for left and right
Manual Adjustment Device ................................................ 2Set
(3)
Pressing Wheel ...................................................................
5
Set
4.Bottom Forming Section
Structure, Features:
(1) Material feeding by INDEPENDENT SERVO
Draw roll Drive System, Photo Cell System for Running Preprinted Materials
(No Change gears)
(2) Rotary Serrated Cutoff with
Elliptical Gears
(3)Adjustable
Bottom Score Device, can adjust the bag bottom size,
(4)Bottom
Opening Cylinder with Split Cam for Full Range Stretch Adjustment
(5) Multi
Layer Bottom Forming Drum, Center Grippers, Second Tuck Clamps, and Drum
Fingers are adjustable for ease of changeover.
(6) Bottom
Glue Applicator with Pneumatic Cylinder for engagement
(7)Bottom
Impressing Roller with up/down Feature for Easy Operation
Parameter, Specification:
(1)
Tube Length Repeat Tolerance: Nominal tube Length +/- 0.5 mm
(2) Servo
Motor: (inovance).................................................. 2 Unit
(3) Serrated
Cutoff Knife ................................................................1 Set
(4) Bottom
Score Device.................................................................1 Set
(5) Bottom
Opening Device ............................................................1 Set
6) Bottom Form
Drum ...................................................................1 Set
(7) Bottom
Glue Applicator............................................................ 1 Set
(8) Bottom
Folder ..........................................................................
1
Set
5.Bag
Delivery Section (standard from the Seller)
Structure, Features:
(1) Side Table Delivery
with Belt for easy operation
(2)
Rubber impress roller for Bag Shape Fixation
Parameter, Specification:
(1)Delivery
Table.................................................................................1Set
(2)Conveying
Belt .............................................................................. 2PC
6.Control
Section
Structure, Features:
(1) PLC
centralized control for whole machine.
(2)Human-machine
Interface: Touch Screen Operator
Control. Ease of Machine Setup for Repeat Changes & Monitoring
Parameter,Specification::
(1)PLC (inovance)...................................................1Unit
(2)In-touch
Screen 10″ (MCGS).........................1Unit
7.Others
(1) Main
Components introduce NSK ball bearing from Japan
(2) Pneumatic
Components: Airtag
(3)Low
Voltage Components: SCHNEIDER.
(4) Side glue system using home make Correction using sheng zhen
(5) SICK photocell for correction, tracking the printed material
accurately
(6) Servo Motor inovance ,and
Electric equipments SCHNEIDER.
Remark:
Due
to the availability of imported components and special requirement for
customization machine, with the precondition no influence to the performance,
the machine specification maybe changed without notice in advance.

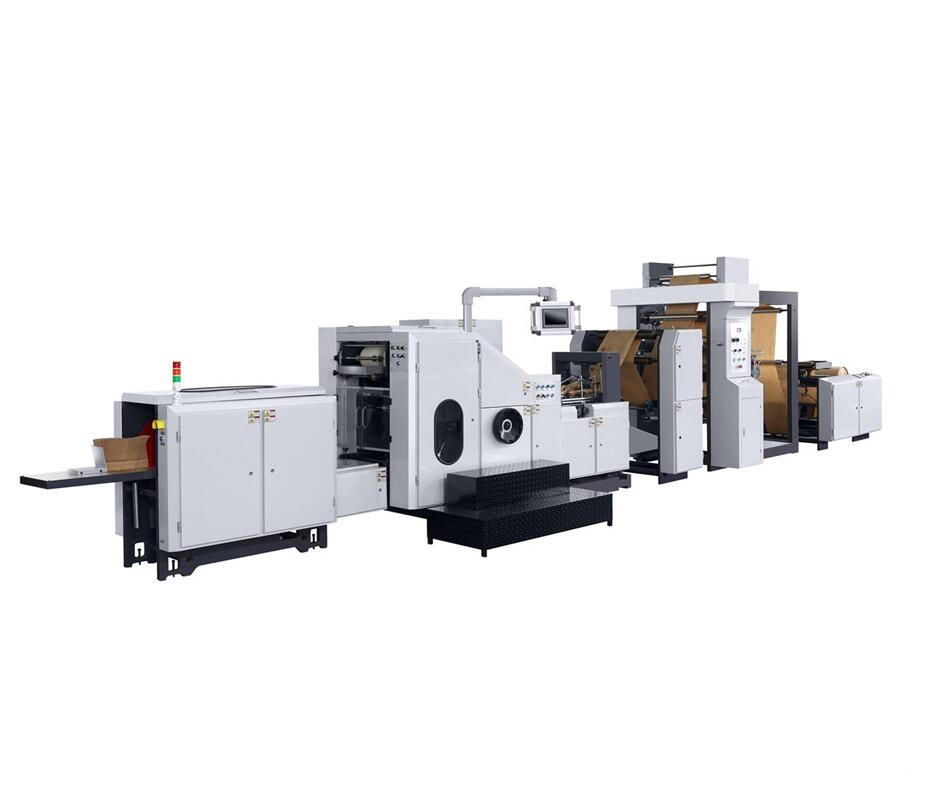

Picture of Machine
|
Machine model
|
ZX-21300
|
|
Maximum width of printing materail(mm)
|
1300mm
|
|
Maximum width of printing (mm)
|
1200mm
|
|
Length rang of printing
|
228-1300mm
|
|
Max.diameter of roller material
|
1200mm
|
|
Printing speed
|
5-80m/min
|
|
Thickness of printing plate (including two
faces of glue)
|
It is decided by customer himself
|
|
Weight of machine
|
3500KG
|
|
Overall dimension (mm)
|
4300x2000x2280mm
|
SAMPLES SHOW
:
.
