Product Description

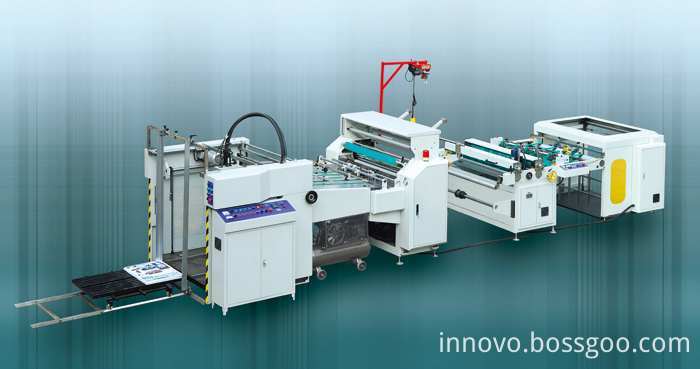

QGFJ-720/1 100(No-glue/Pre-coated)
automatic film laminating machine is based on the market requirements,
researched and developed from the manual (no-glue/pre-coated ) film laminating
machine. This machine possesses machine, electricity, gas and phobic all In
one, with the advantage as higher production efficiency, smooth running and
more humanization. It is the ideal equipment for the printing factory to
upgrade their products class and improve economic performance.
Characterize:
1. The feeder Is non-stop to feed paper,
and equipped with paper loading function.
2. The high precision front guide with the
automatic alignment function, enhance the laminating precision.
3. Airframe adopts casting structure with
high manufacturing precision durable and never deformation.
4. The oil recycles heating system makes
heating roll surface temperature uniform and stable.
5. The laminating rubber roll adopts
automatic hydraulic pressure control system.
6. Film roll is unloaded by the
electromotion.
7. Disc type cutting knife snap machine
improves the snapping speed.
8. The electric part apply Imported
electric component. The function is stable.
9. the main frame use frequency conversion
to achieve the working speed be adjuatdd atfd flexile.
10.It adopts human engineering interface
design, easy to be operated and flexible to be use.
Main Technical
Variables:
|
Model
|
720
|
1100
|
|
Max. Paper size
|
20mmX940mm
|
1050mm*940mm
|
|
Min. Paper size
|
300mmX300mm
|
300mm*300mm
|
|
Suit Thickness:
|
100-500g/m
|
100-500g/m
|
|
:Working Speed
|
5-50m/min
|
5-50m/min
|
|
Laminting Temperature
|
80-120℃
|
80-120℃
|
|
Overall Dimension
|
8m*1.5m*1.8m
|
8m*l.9m*l.8m
|
|
Total Power:
|
17KW
|
25KW
|
|
Total Weight:
|
3T
|
4T
|
