The original dynamic programming for the system, the
paper chase arrived before syndiospecific, lateral to synchronous type and side
syndiospecific location, two pieces of paper can be marching accurately and completely. Transmission: planetary transmission system, power
transmission distribution, the whole machine is made of timing belt drive,
maintenance free, low noise, high efficiency.
The low E
type double
gap design, can be attached to the paper tray into
the use of feeding dray, convenient and quick. Can
also be added with a track to assist the pile board, ideal E type of low pile
board with high speed lifting device, paper complement in a shorter time,
increase work efficiency.
The new development of the ceiling before feeding paper machine,
avoiding size conversion debugging, the novice can also
operate, barrier free space.
Fluff type
delivery structure: can overlap the
compressed finished first fluff after pushing, to
ensure smooth delivery. E type supporting board with high
speed lifting device can quickly and
easily be finished out, increase work efficiency.
Speed and pressure paper length power adjustable,
convenient size conversion, will complete the attached paper overlapping compression,
also can accelerate the speed, the paper respectively compression. The new round
ofincrease pressure group, tissue bonding product two
degrees weight can be respectively compressed, make
the product more smooth and exquisite.
Special planning of high precision coating mechanism of
wheel and a round of machining accuracy (0.01m/m, adhesive coating in the
lowest about can be transferred to the 0.02m/m). Automatic liquid level
control, can according to the demand for paper precisely regulate the amount of
coating and ensure the casters for easy dismantling, cleaning and adjustment. Glue scraping back wheel, the high-speed operation
of the wheel rim will not overflow glue, and can adjust the glue of reflux, to
ensure that the coating device.

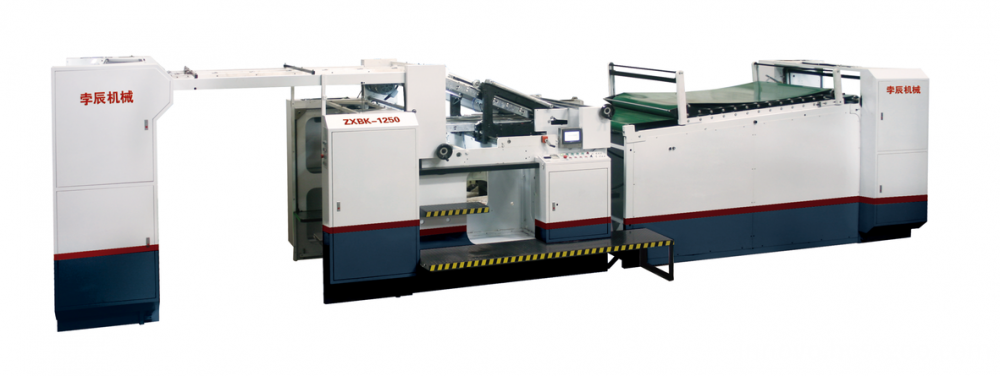

Mode
ZXBK-1250
ZXBK-1450
Max sheet size
720*1250 mm
980*1450 mm
Min sheet size
350*500 mm
500*500 mm
Max working width
1250 mm
1450 mm
Cardboard thickness
200-600 g/m2
200-600 g/m2
Max feeding speed
9000p/h
6000p/h
Total power
14.8 KW
17.2 KW
Total weight
7585 KG
8585 KG
Overall dimension
12750*2300*3000 mm
15000*3050*3000 mm
