Product Description
1. Detailed parameters:
|
Dodel
|
Inner Chase
Size(mm)
|
Max.Rule
Langth(m)
|
Speed
(Counts/Min)
|
Motor
Power
|
Machine
weight(kg)
|
Overall Dimensions
(mm)
|
|
ML-750A
|
750*520
|
<=20
|
28±2
|
2.2kw
|
2200
|
1540*1650*1650
|
|
ML-930A
|
930*670
|
<=30
|
25±2
|
4kw
|
3700
|
1960*1760*1720
|
|
ML-1040A
|
1040*720
|
<=35
|
25±2
|
4kw
|
4000
|
2000*2000*1700
|
|
ML-1100A
|
1100*800
|
<=40
|
23±2
|
4kw
|
5200
|
1950*2100*1900
|
|
ML-1200A
|
1200*820
|
<=40
|
23±2
|
4kw
|
5500
|
2000*2100*1900
|
|
ML-1300A
|
1300*920
|
<=45
|
16±2
|
7.5kw
|
6500
|
2350*2100*1700
|
|
ML-1400A
|
1400*1000
|
<=50
|
16±2
|
7.5kw
|
7100
|
2450*2100*1800
|
|
ML-1500A
|
1500*1040
|
<=55
|
16±2
|
7.5kw
|
7800
|
2550*2100*1800
|
|
ML-1500AG
|
1500*1140
|
<=55
|
16±2
|
7.5kw
|
7900
|
2550*2100*1900
|
|
ML-1600A
|
1600*1250
|
<=56
|
14±2
|
11kw
|
12300
|
2780*2300*2400
|
|
ML-1800A
|
1800*1300
|
<=65
|
14±2
|
11kw
|
14300
|
2980*2300*2500
|
|
ML-2000A
|
2000*1400
|
<=70
|
14±2
|
15kw
|
16300
|
3180*2400*2580
|
|
ML-2200A
|
2200*1400
|
<=75
|
13±2
|
15kw
|
18300
|
3380*2400*2580
|
|
ML-2500A
|
2500*1600
|
<=85
|
12±2
|
22kw
|
22300
|
3680*2400*2580
|
|
ML-2800A
|
2800*1600
|
<=90
|
12±2
|
30kw
|
24400
|
4000*2400*2580
|
|
ML-3000A
|
3000*1600
|
<=95
|
12±2
|
30kw
|
26500
|
4200*2400*2580
|
2. Description:
1. The machine use high strength casting (HT250) made by resin sand process.
2.Strong structure design. More strong, more big for main shaft,connecting rod,main body,wheel etc.
3.Iess deformation when get die cutting stress,smooth surface, the main shaft with copper tile to get more abrasion resistance and stability.
4.Suitable for adhesive sticker,plastic,jigsaw pictures,big area hot stamping,concave-convex printing etc. wide field of application,long service life.
5.Avilable to put in 360 meter foil.

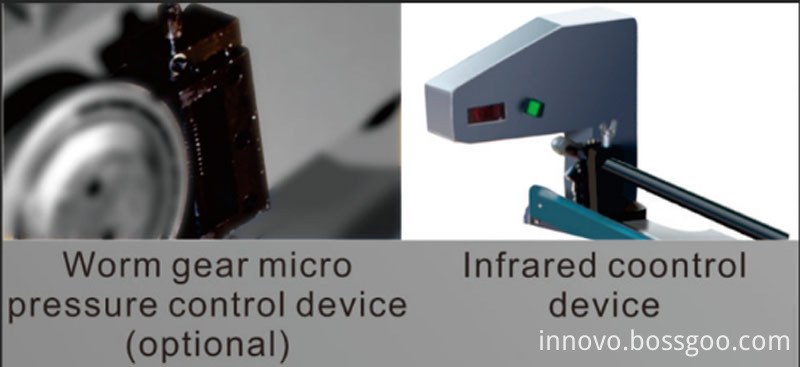

6.Have worm gear micro pressure control device(optional).
7.Use car's paintwork to make parin for whole machine.
8.Infrared control device to keep safe.
9.Automatic oil recycling system(optional)can transport dropped oil back to pump for recycling to save the enegy and environmental protection.

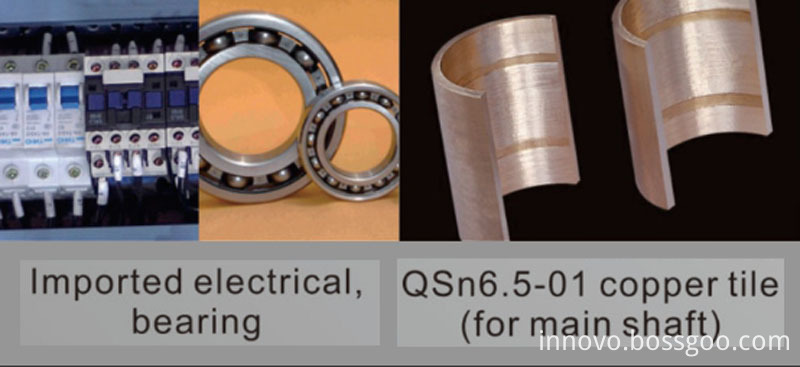

10.imported electrical parts,imported bearing.
3.The pictures of parts
