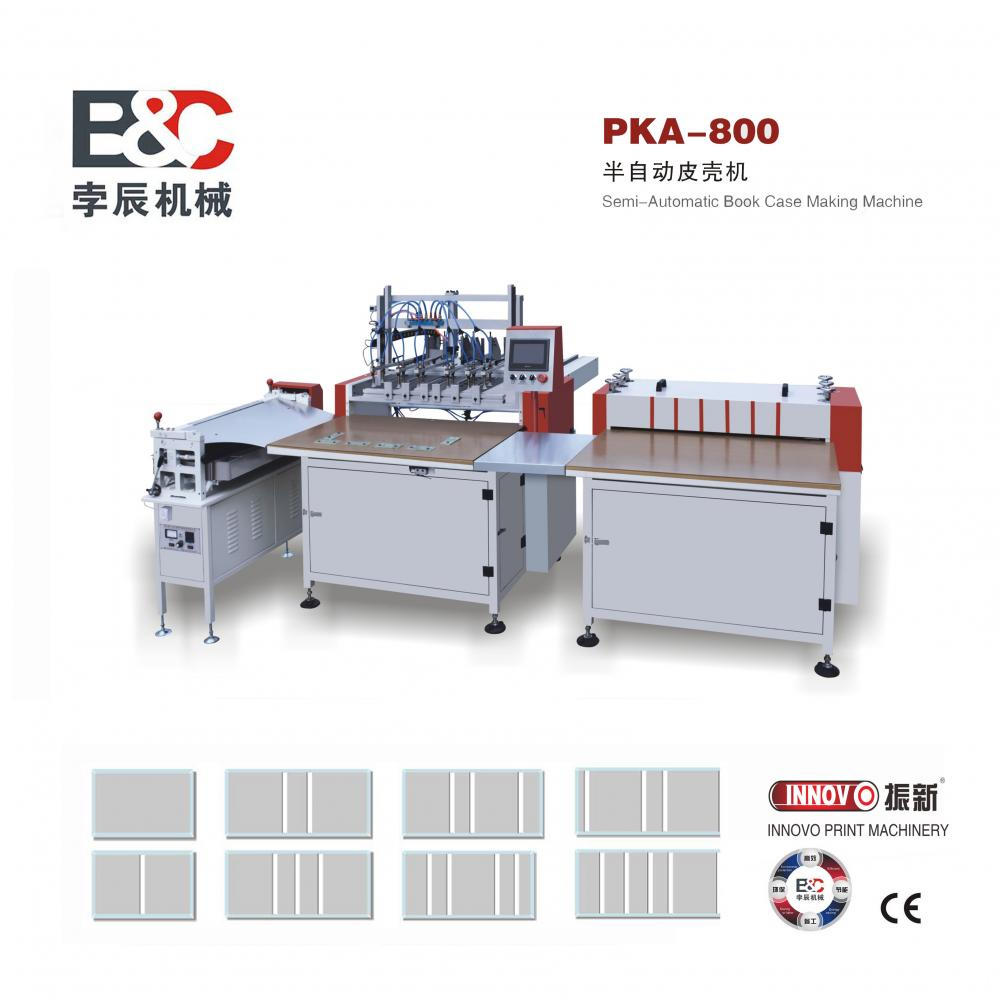

PKA Book Case Making machine

Basic Info

Model No.: PKA-800

Printing Type: Offset Printing

Case Size(max): 800*450mm

Case Size(min): 150*150mm

Dimensions(L×W×H): 3300*1220*1550mm

Paper Thickness: 80-175g

Work Speed: 10-15PCS/minute

Additional Info

Packaging: wooden packing

Productivity: 30sets/month

Brand: Innovo

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 25sets/month

Certificate: ISO

Product Description

· Type: Other

· Condition: New

· Application: Machinery & Hardware

· Packaging Type: plywood Case

· Packaging Material: Paper

· Automatic Grade: Semi-Automatic

· Driven Type: Electric

· Voltage: 220V

· Power:0.75Kw

· Place of Origin: Zhejiang, China (Mainland)

· Brand Name: INNOVO

· Model Number:PKA-800

· Weight: 800 kg

· Dimension(L*W*H): 3300*1220*1550mm

· Plywood case dimension:3450*1450*1700mm

· color: white and red

Specifications

The case making machine is mostly applicable to various notebook, photo book (photo album), folder, certificate, hardcover book.

This machine is the most applicable to various notebook, photo book (photo album), folder, certificate, hardcover book ,shell for folding(covering) and pressing, twice finished on both sides, one operator, forthright, Covers an area of small space , is post-press especially digital post-press  good partner.

Feature

Upper side glue when paper cross the roller

Glue pump can cycle glue when drop down on the inox roller

Large capacity glue tank

Automatically clean the roller if not work
Adopting PLC operating system
Can use hot glue, white latex
Replace products, adjustable machine speed

Feeder position

Working details

This machine need 2 worker at same time.

Firstly: one person stand in the front of plate glue the cover paper with Glue Machine on upper side;

Secondly: sucker move the cardboard to the glued cover paper automatically;

Thirdly:the same person convey the fixed unit to fold 2 book side by put into the plate,move to the back of sucker

Fourthly:the person stand in back of sucker move the 2 sides folded cover to ZXSCM 500 I Book Hard cover Double-side edge folding machine,Then folding the other 2 sides,push out,finished.

Technical parameter
